Quick Release Bases

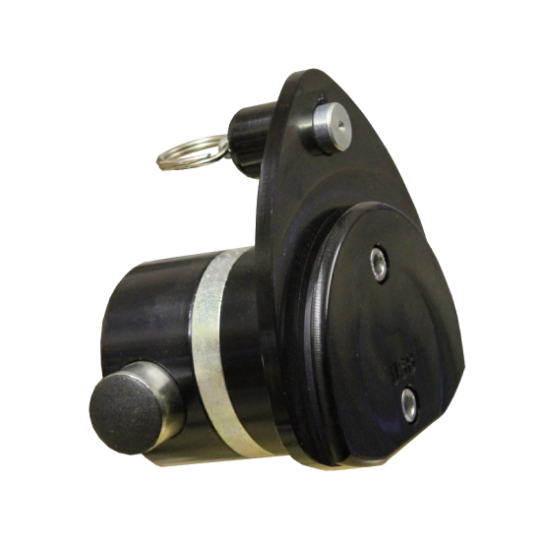

The Quick Release Base is the component that attaches to the top or main tube of the mount and receives the adapted device. Quick Release Bases are available in various styles with different functionalities. Quick Release Base styles for attachment to other locations are available to expand the possibilities of supporting a device in different places.
The front ‘face’ of the Quick Release Base has an arc ridge the device adapter fits into and a spring-operated lock pin that secures the device. The original regular size face is well suited for large communication devices; an alternate small face is available in some quick release base styles and is well suited for smaller devices.
Quick Release Bases for the Original Series DAESSY Mounts, DAESSY Rolling Mount floor stands and several DAESSY Desk Mount styles are listed here. These Quick Release Bases fit 7/8” diameter mount tube.
Total Quick Release Base
Part code: TUSB
Total Quick Release Base
Part code:
TUSB
Product type:
Quick Release Base
Description:
The Total Quick Release Base has an integrated tube mount for 7/8″ mount tube. The TUSB is the default quick release base included with many mounts.
Articulating Quick Release Base (standard face)
Part code: AQRL-87
Articulating Quick Release Base (standard face)
Part code:
AQRL-87
Product type:
Quick Release Base
Description:
Articulating Quick Release Base
(small face)
Part code: AQR-87
Articulating Quick Release Base
(small face)
Part code:
AQR-87
Product type:
Quick Release Base
Description:
Mini Quick Release Base
Part code: MUSB
Mini Quick Release Base
Part code:
MUSB
Product type:
Quick Release Base
Description:
A smaller version of the standard TUSB Total Quick Release Base. The MUSB Mini Quick Release Base fits all DAESSY device adapters, mounting plates and holders.
Folding Quick Release Base
Part code: USBF
Folding Quick Release Base
Part code:
USBF
Product type:
Quick Release Base
Description:
The Folding Quick Release Base provides easy adjustment of angle rotation around the mount tube with 6 stop positions. A retractable lock pin secures the base at the chosen angle.
Rotate Base Quick Release
Part code: RB/RBTM+USB
Rotate Base Quick Release
Part code:
RB/RBTM+USB
Product type:
Quick Release Base
Description:
The Rotate Base Quick Release allows real-time tilt rotation for the angle of the device. No tools are necessary to make adjustments, the position is held by set friction. When a locked tile angle position is required use of an Articulating Quick Release Base or Sideways Tilting Quick Release Base would be better suited.
Sideways Tilting Quick Release Base
Part code: USBA+TMAT
Sideways Tilting Quick Release Base
Part code:
USBA+TMAT
Product type:
Quick Release Base
Description:
The Sideway Tilting Quick Release Base includes a tube mount for 7/8″ mount tube. The angle of the device can be rotated to tilt right or left and locked in place.

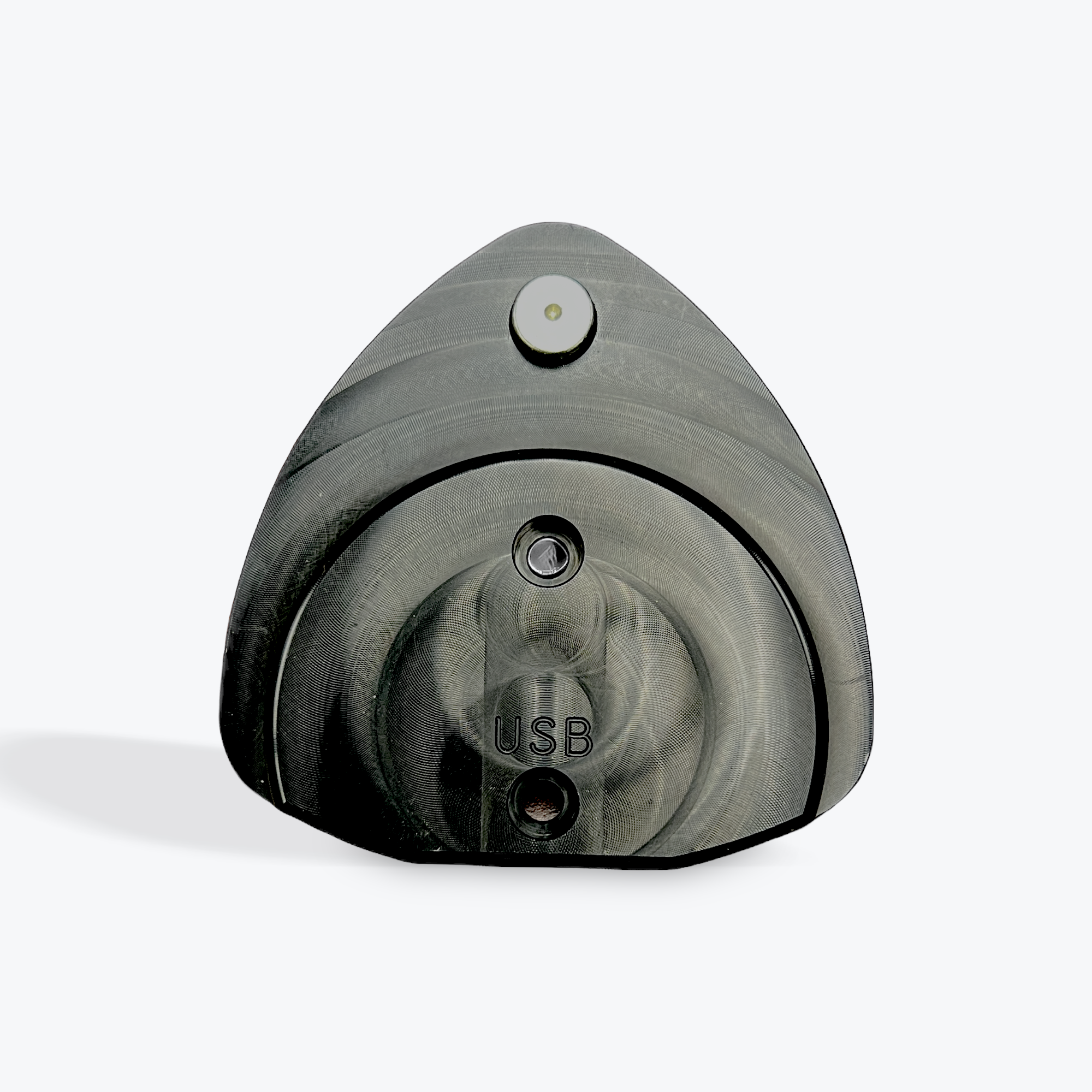

Flat Quick Release Base
Part code: USB
Flat Quick Release Base
Part code:
USB
Product type:
Quick Release Base
Description:
The Flat Quick Release Base has two 1/4″ holes drilled at 1-1/2″ spacing and can be attached to any flat surface. When used on a flat surface a hole must be cut for the lock pin. Connects with all DAESSY device adapters, mounting plates and holders.
