M75-AM

Mini Adjustable Mount

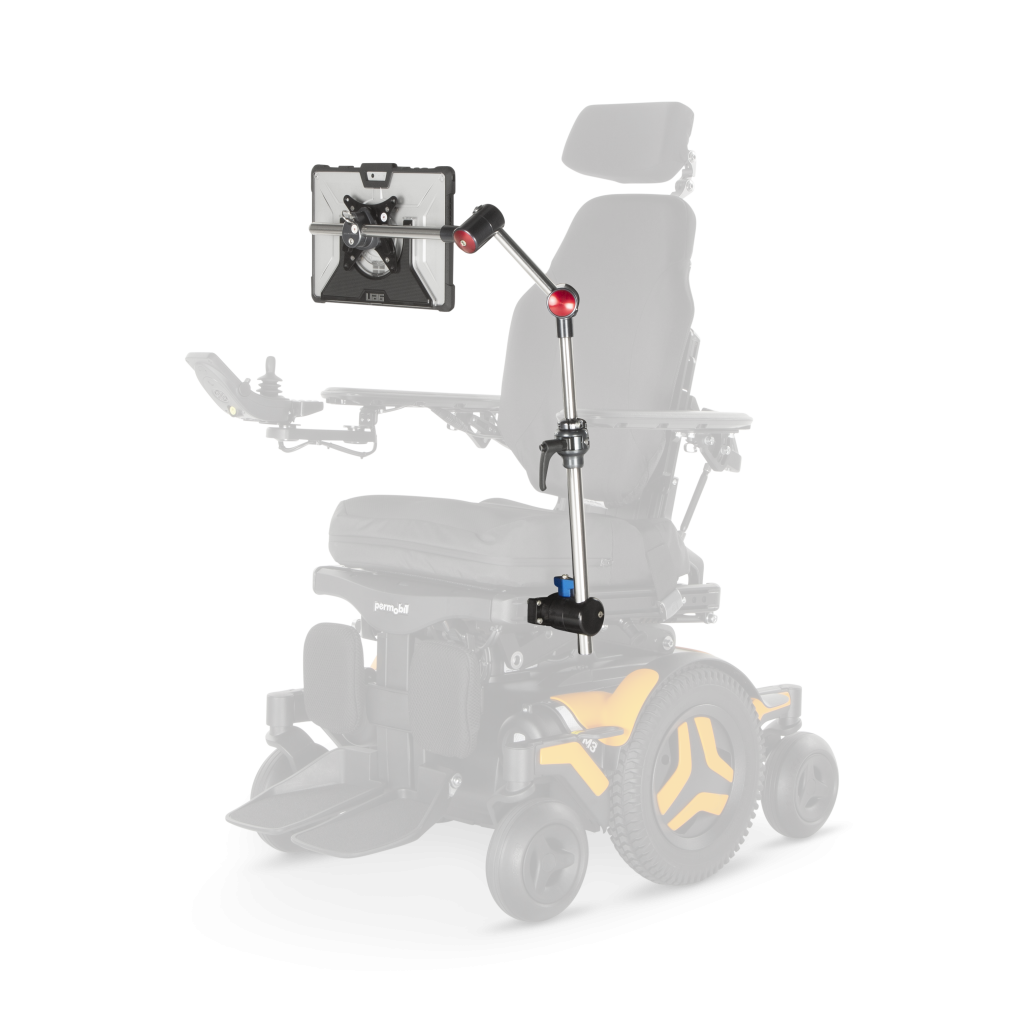

The Mini Adjustable Mount has several points of adjustment to setup and position the mount. Two rotating joints can be angled and twisted in numerous directions to adjust the ‘horizontal’ tube position.

  • The Mini Adjustable Mount includes real-time height adjustment – no tools needed
  • Overall height adjustment of 13” (33cm) to a maximum height of 31” from frame clamp
  • Easily removed from wheelchair
  • Suitable for most wheelchair types including Tilting Seat Systems
Brochure Watch Video
Caution

When installed on a tilting seat system the wheelchair seat should be in the upright position while adjustments are made. All joints must be tightly secured prior to tilting the seat and mount.

When adjusting and/or loosening any joint of the Mini Adjustable Mount the weight of the mount arm and attached device must be supported to prevent it from swinging or falling towards the user.

Default Configuration
  • Frame Clamp Inner Piece – 1” standard UFC1000IP
  • Quick Release Base – MQR75
