M75-FM

Mini Folding Mount

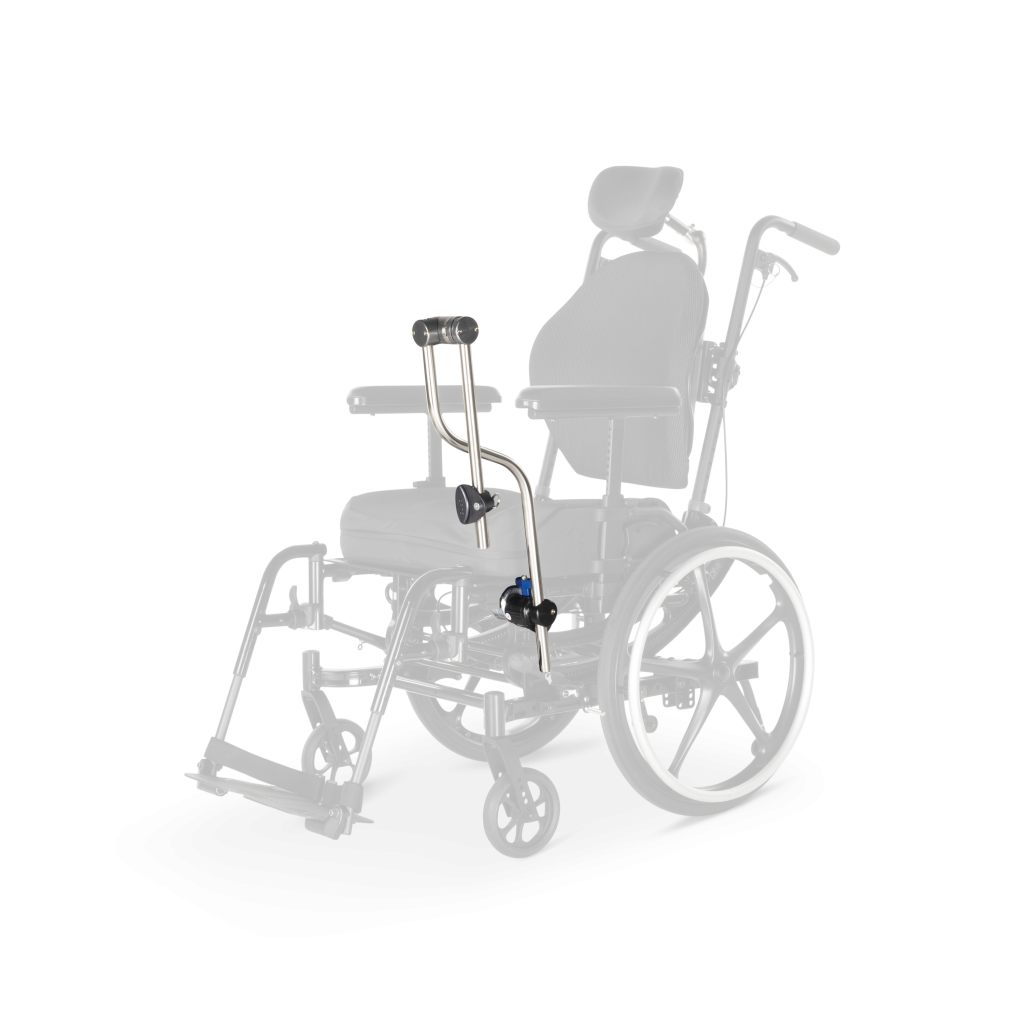

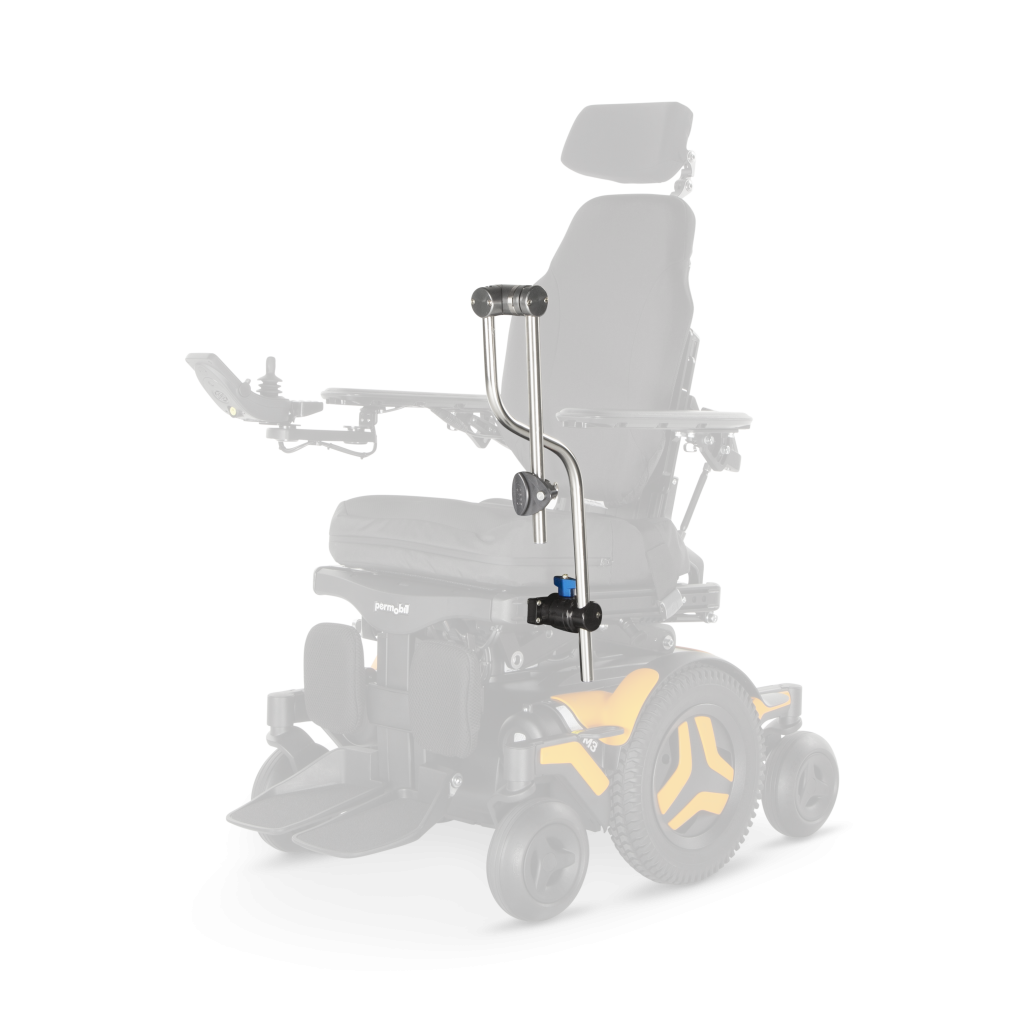

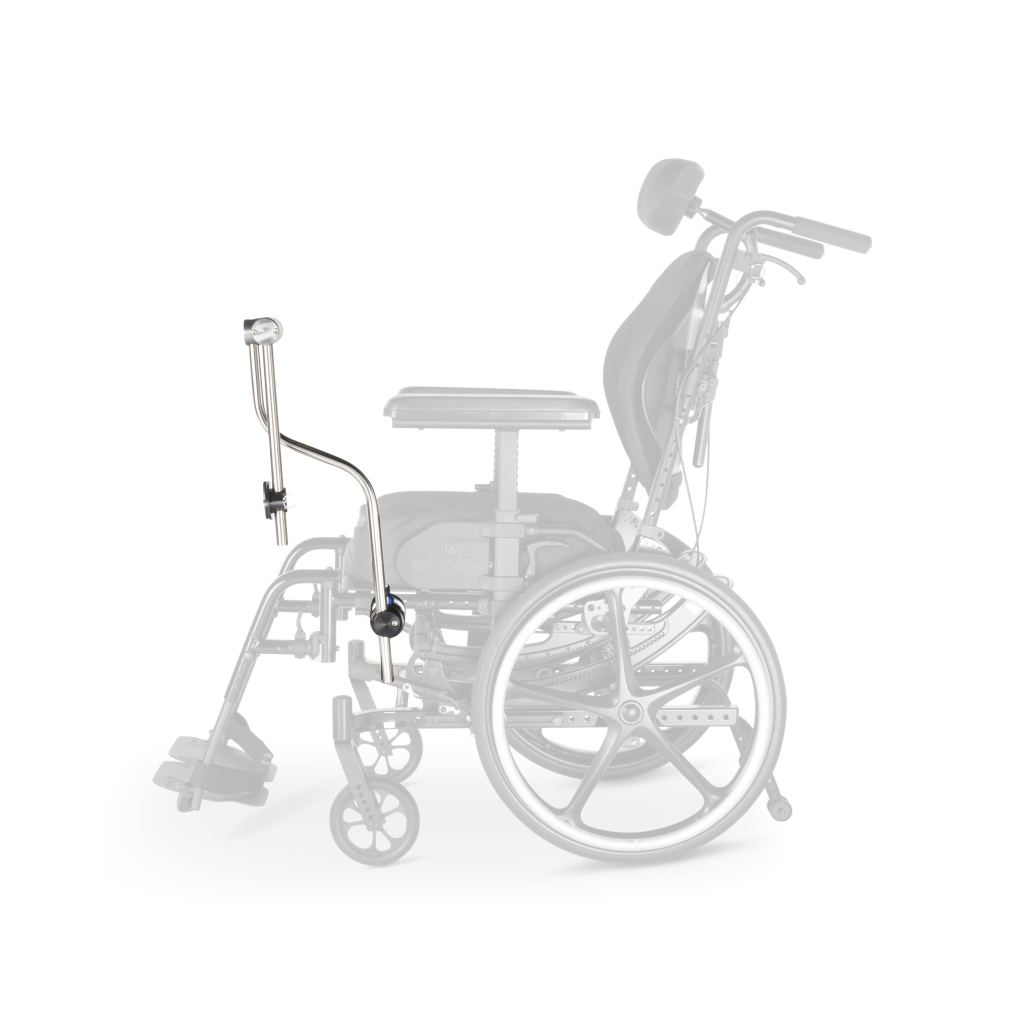

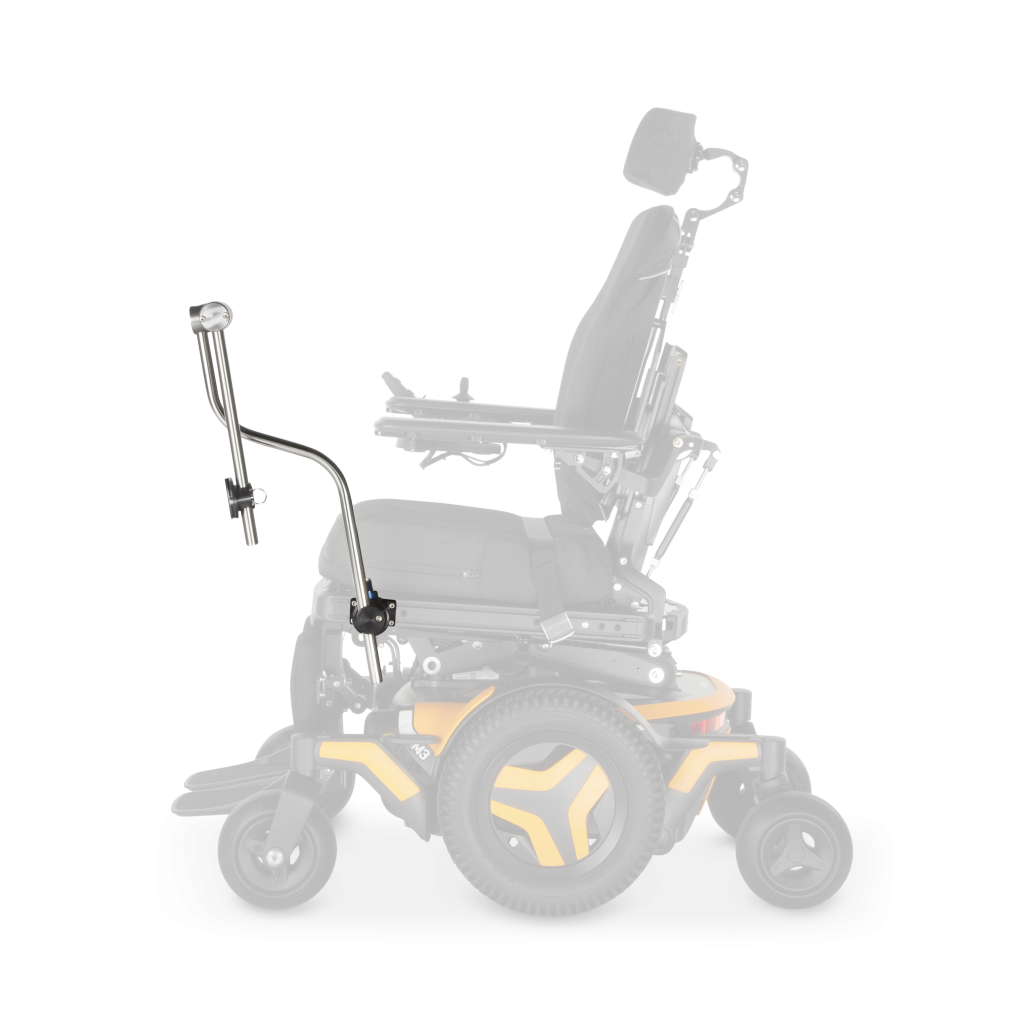

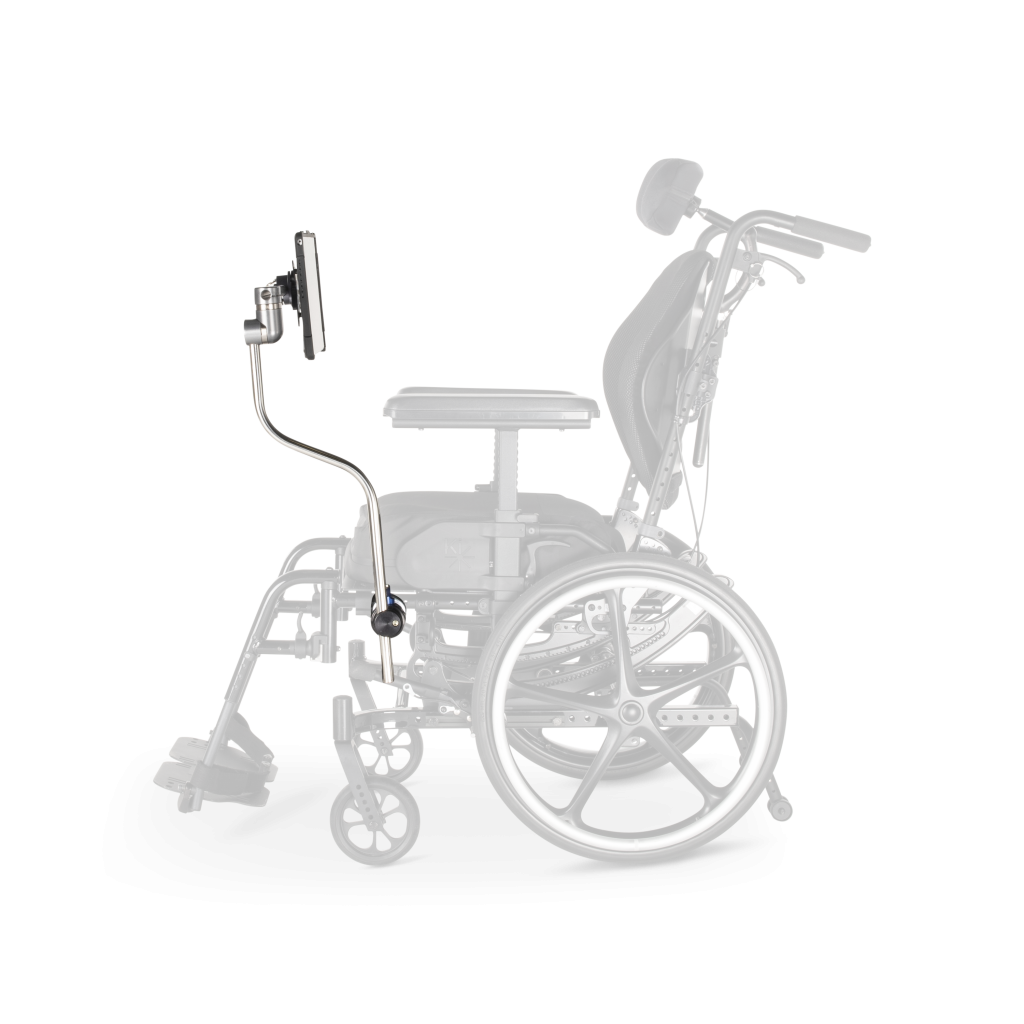

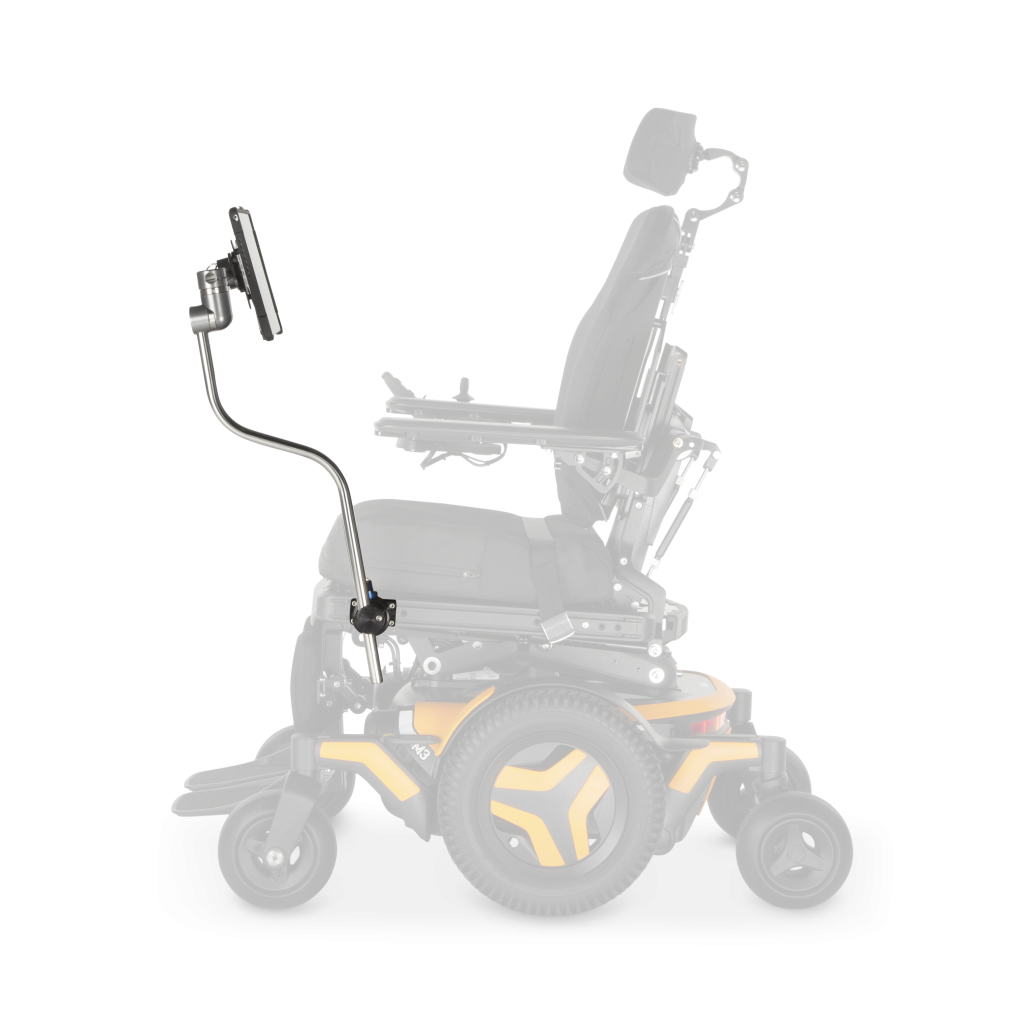

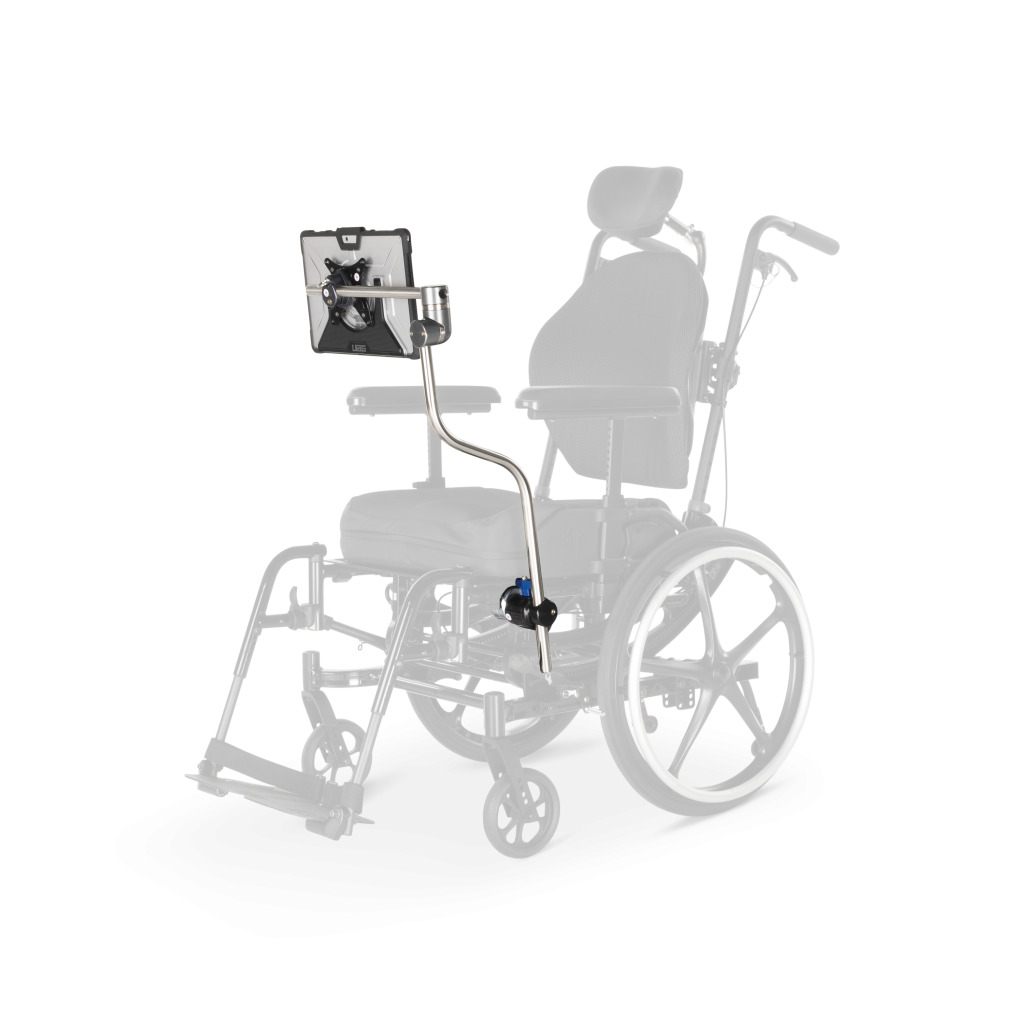

The Mini Folding Mount, as the name suggests, folds the horizontal tube down to the outside. The folding joint between the two mount tubes performs a 2-step folding sequence to bring the tubes parallel. When folded and removed from the wheelchair the Mini Folding Mount is a more compact unit for storage.

  • The mount is non-directional and may be installed on either side of a wheelchair
  • Suitable for most wheelchair types including Tilting Seat Systems
  • M75-FM standard side tube dimension 24” length, 6” offset, and horizontal tube 14” straight
Brochure Watch Video
Caution

In the folded position the attached device protrudes beyond the side of the wheelchair making it vulnerable to collisions if the wheelchair is moved or driven. It is recommended to remove the device from the mount.

The vertical tube must not be installed or moved forward beyond 15° during use.

Default Configuration
  • Frame Clamp Inner Piece – 1” standard UFC1000IP
  • Quick Release Base – MQR75
  • Side tube 24” length, 6” offset – M75SC-24x6
