DRM1

Rigid Mount

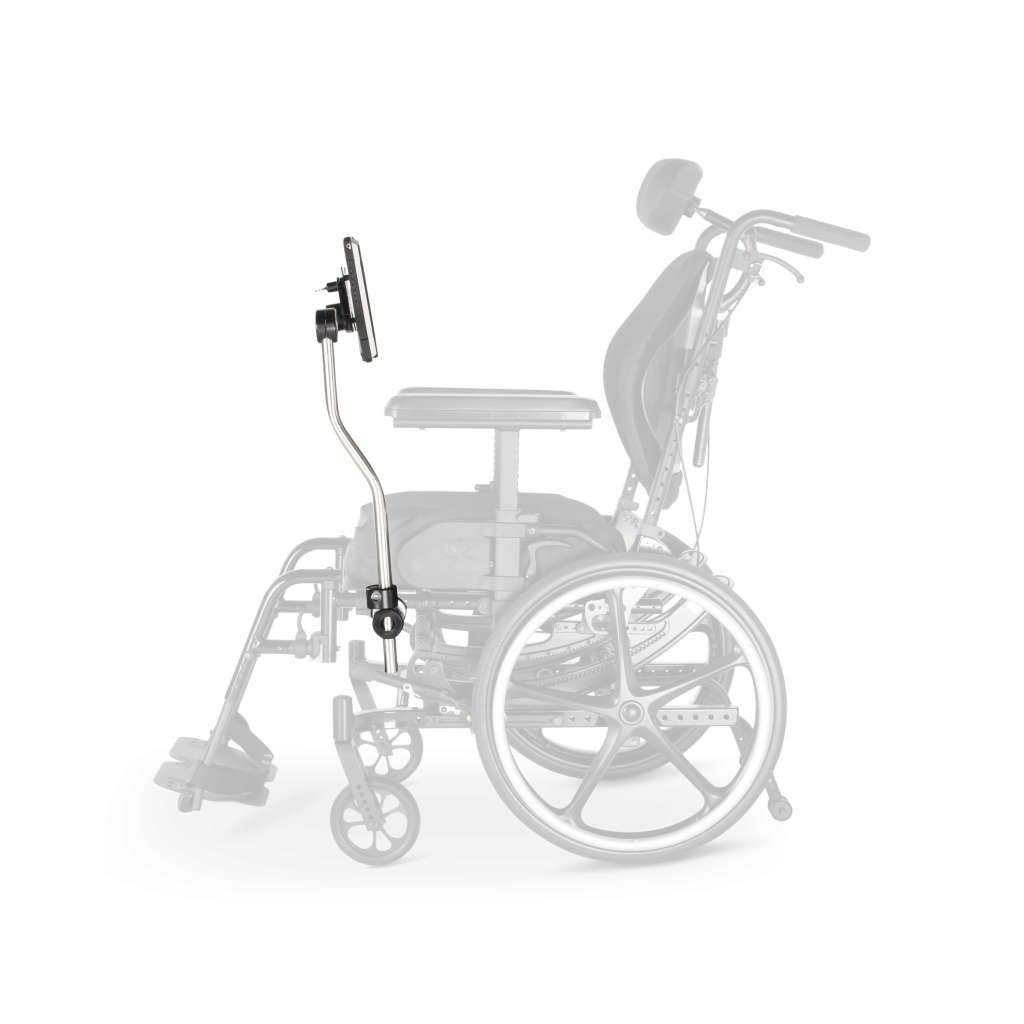

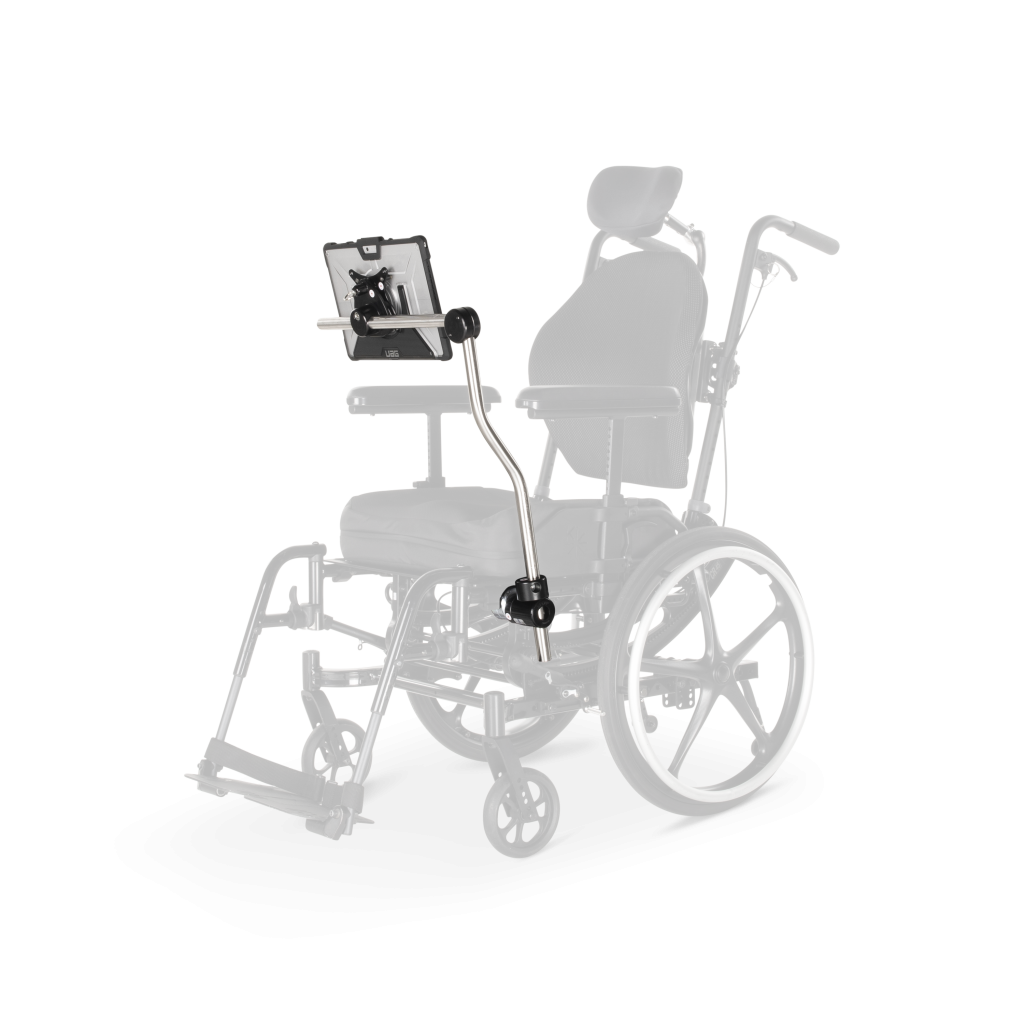

The DAESSY Rigid Mount provides a simple, sturdy and adaptable mounting support. The mount consists of two tubes joined with a rigid connection at a right-angle. Lifting slightly allows the mount to be rotated around to the side. The mount is non-directional and may be installed on either side of a wheelchair.

  • Simple, sturdy and cost-effective
  • Easily removed from wheelchair
  • Suitable for most wheelchairs
  • Available in ROP version with lock receiver (DRM1ROP)
Brochure Watch Video
Caution

The Rigid Mount can support equipment that is heavy enough to unbalance an unoccupied and lightweight wheelchair when swung out to the side. It is recommended to remove the device and/or mount before the wheelchair is vacated.

The Rigid Mount side tube should remain within 15 degrees of vertical for proper engagement of the frame clamp assembly position pin.

The DRM1ROP Rigid Mount ROP cannot be swung to the side. The mount must be unlocked and removed for access to the user or during transfers.

Default Configuration
  • Frame Clamp Inner Piece – 1” Standard UFC1000IP
  • Quick Release Base – TUSB
  • Side tube 22” length, 3” offset – S-22 x3
  • Frame Clamp Assembly style – Standard UFCOP outer piece
