DSAM4

Swing Aside Mount

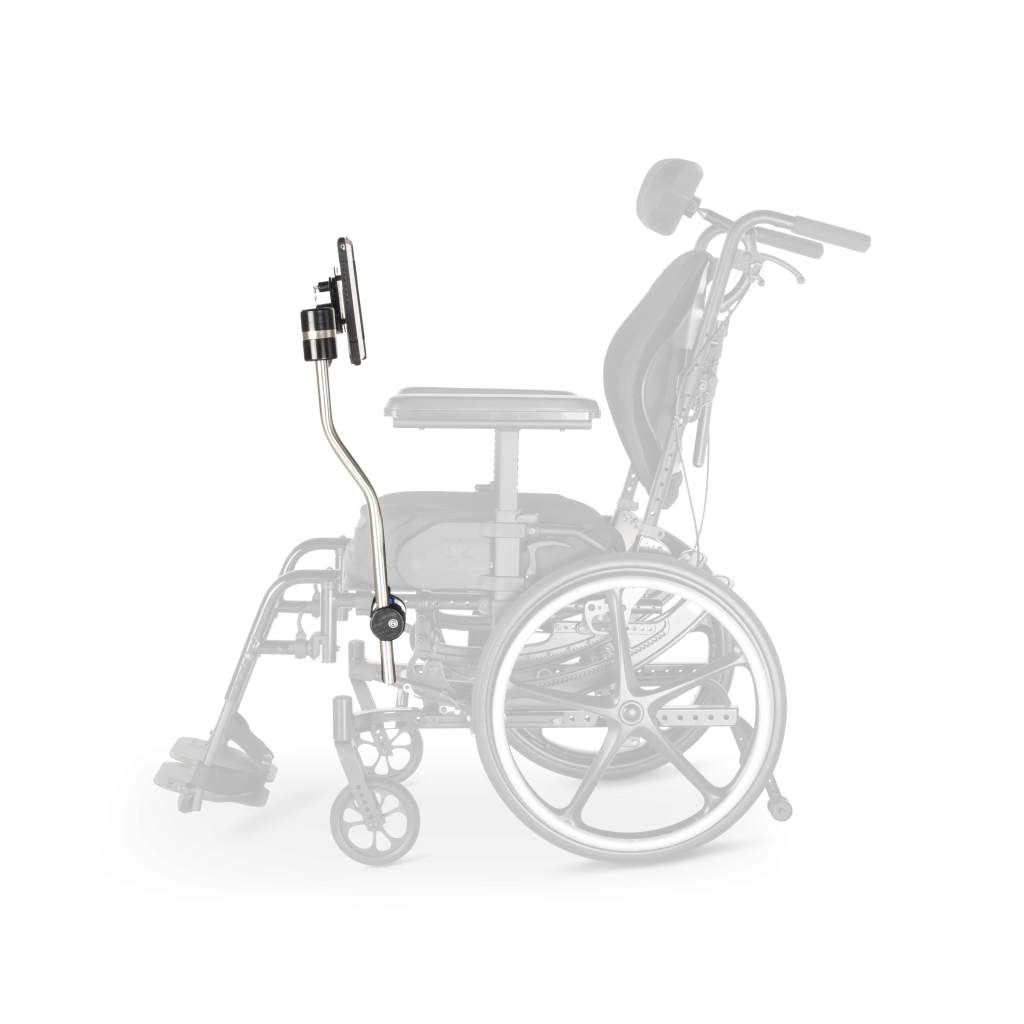

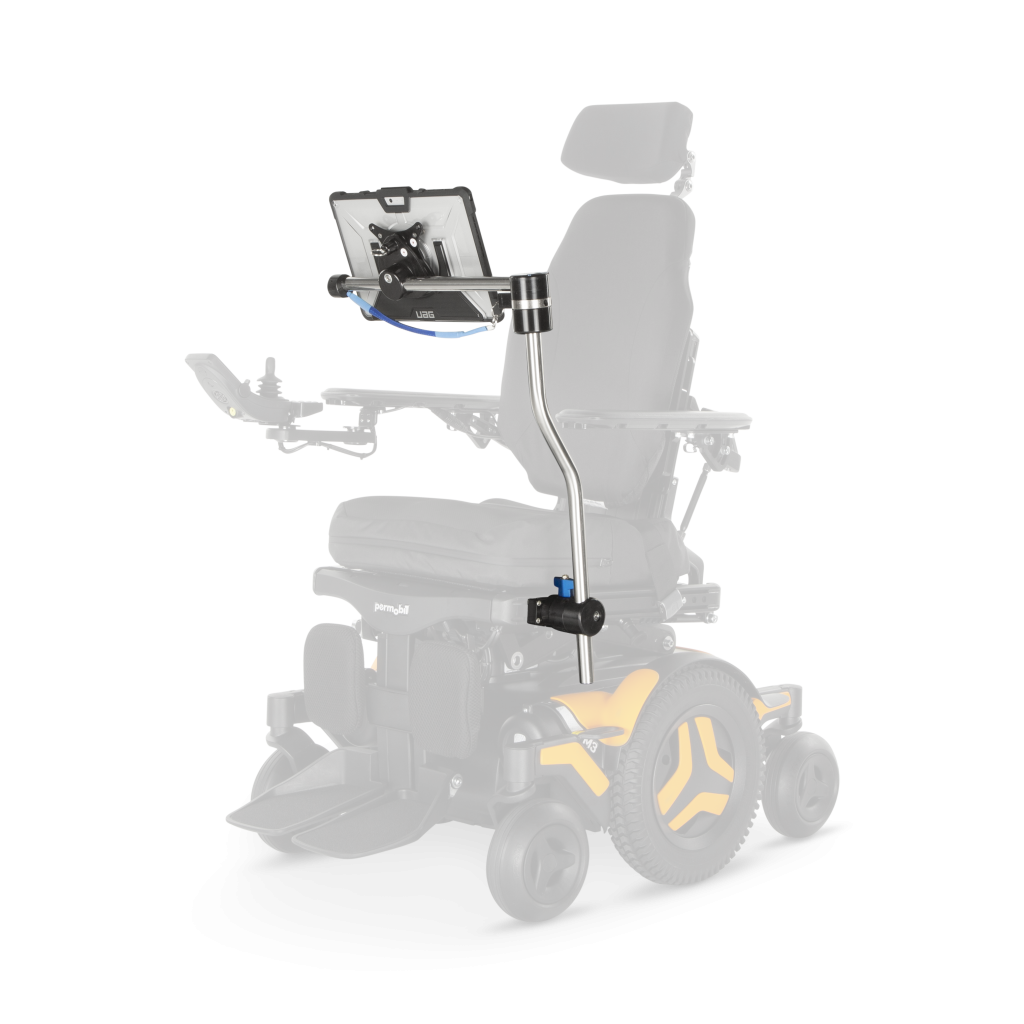

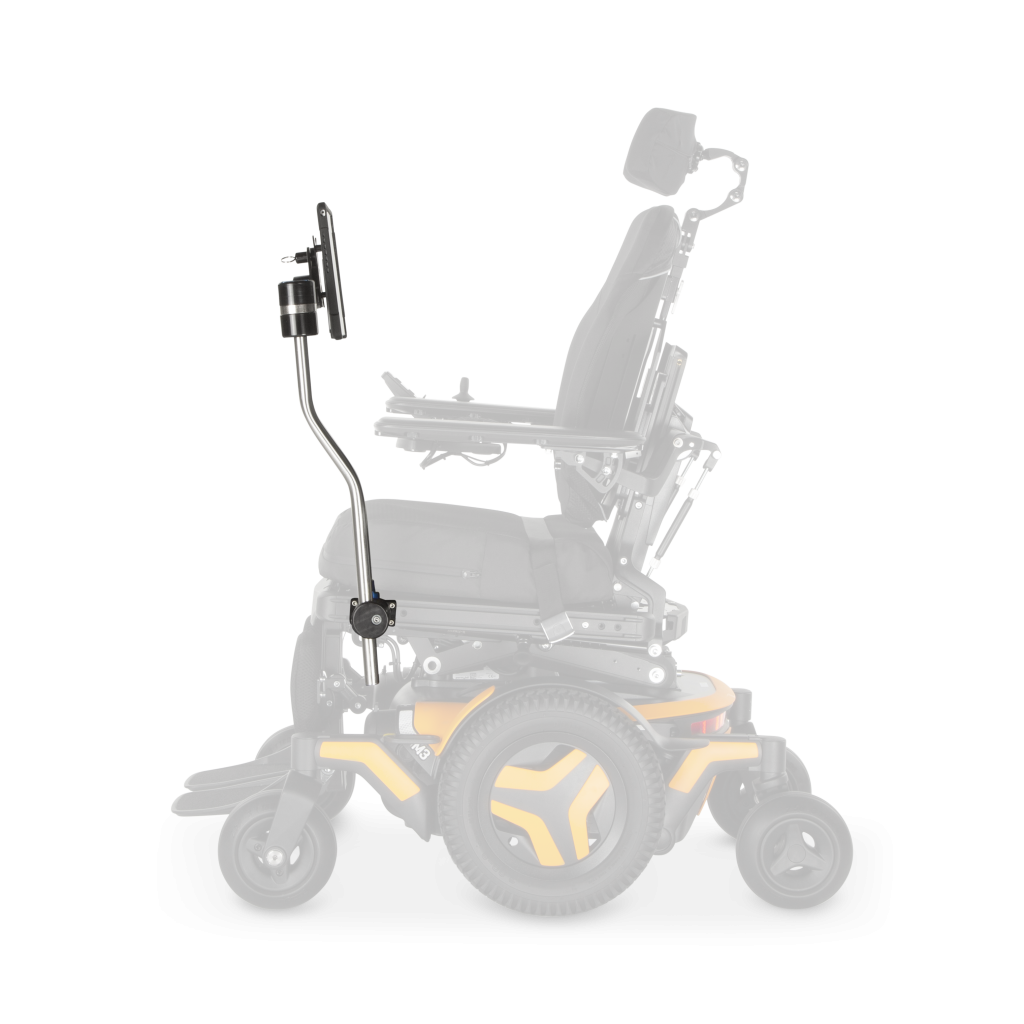

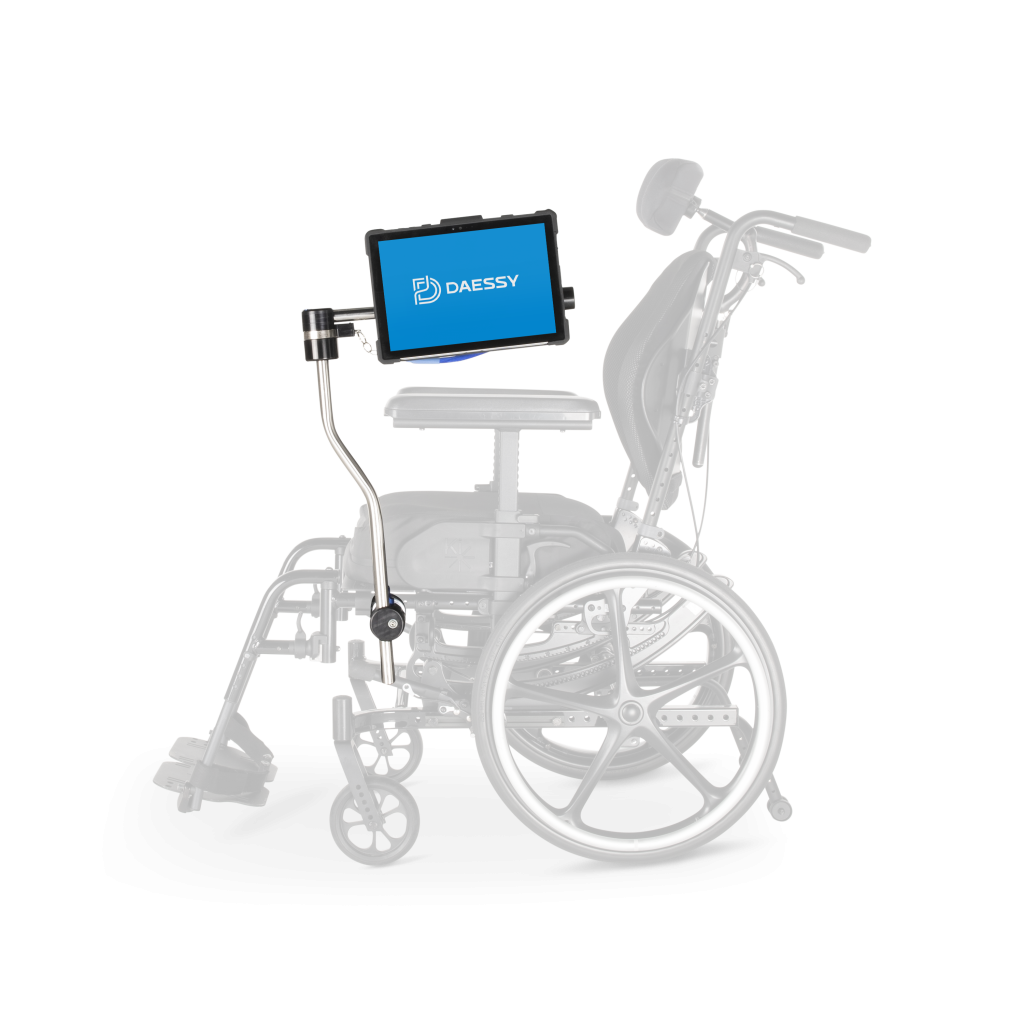

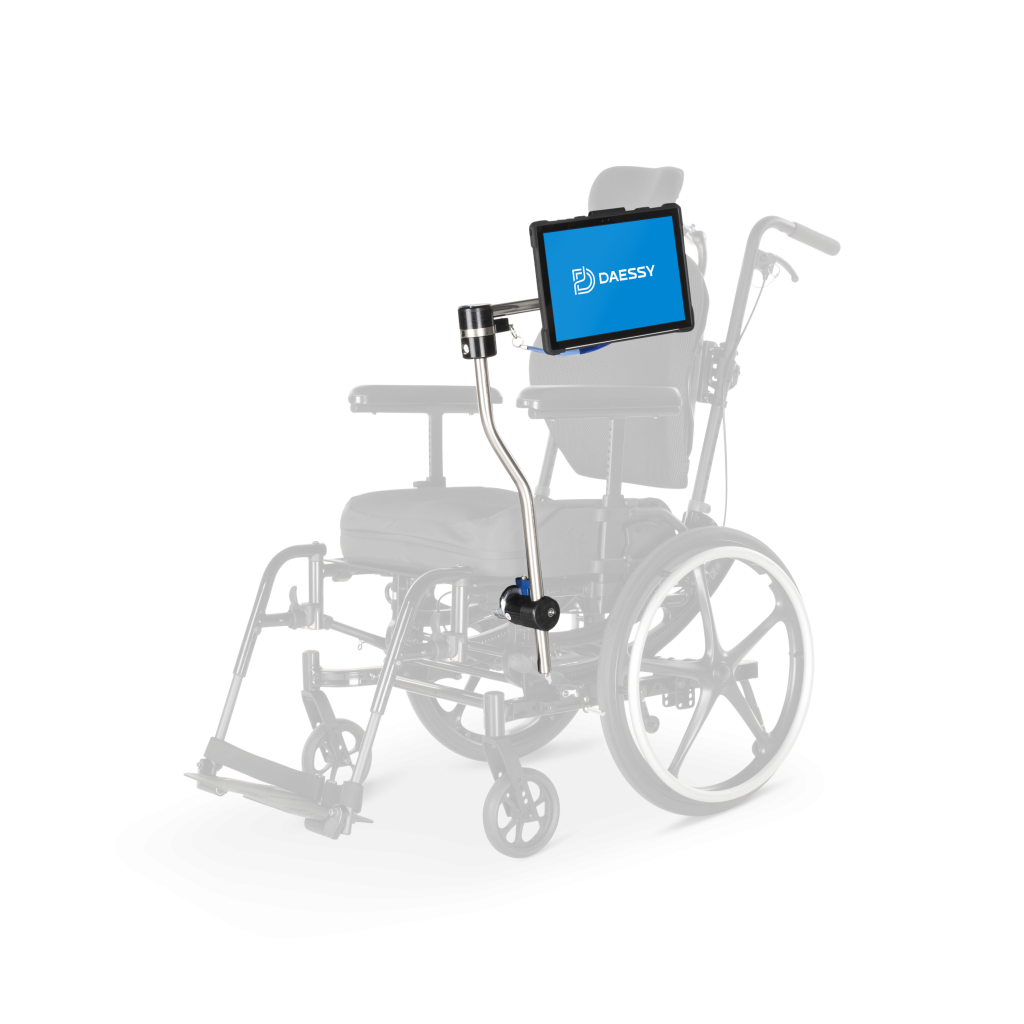

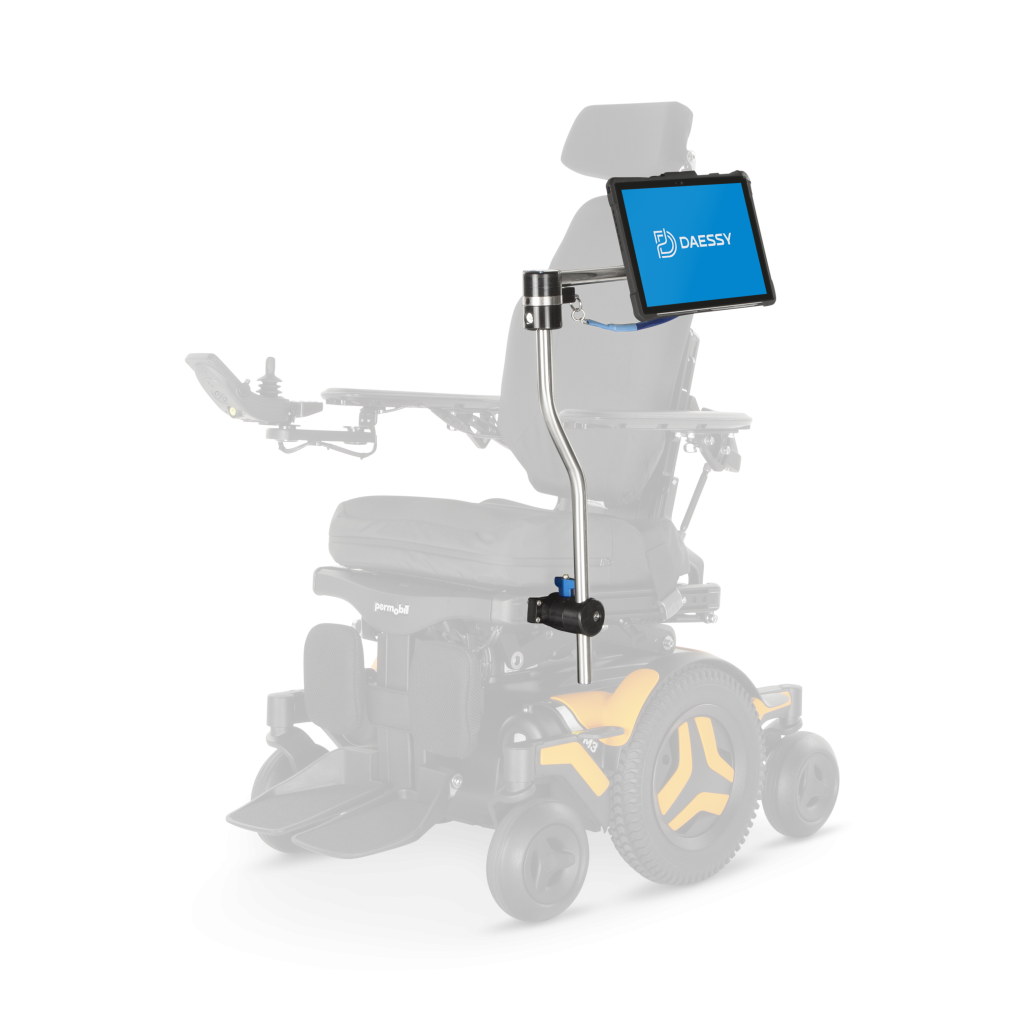

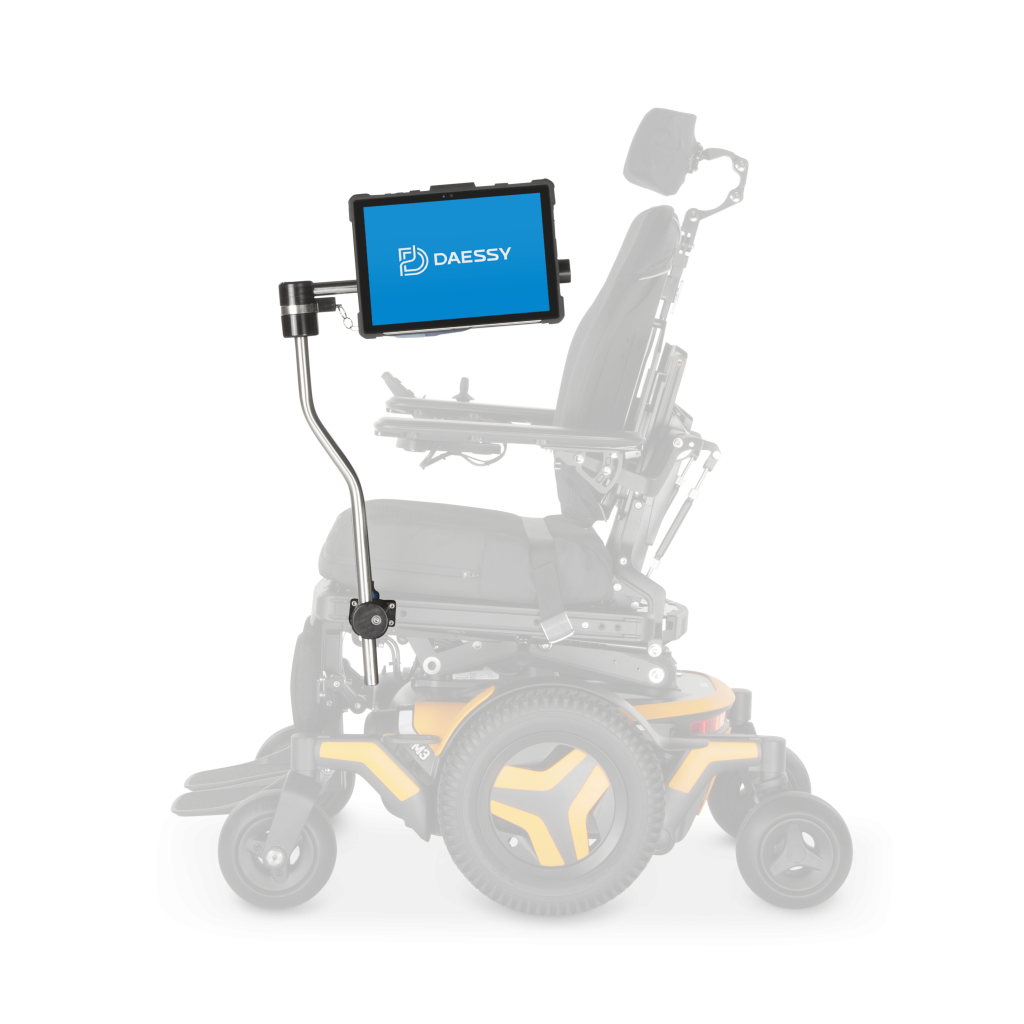

The top horizontal tube of a Swing Aside Mount can be rotated to move a device away independently by pushing the cable that releases a positioning lock-pin. The Swing Aside Mount includes a locking style frame clamp receiver to secure for use on tilting seat frames. The mount is non-directional and may be installed on either side of a wheelchair.

  • Independent operation by the user to swing away the mounted device
  • Easily removed from wheelchair
  • Suitable for most wheelchair types including Tilting Seat Systems
Brochure Watch Video
Caution

The Swing Aside Mount can support equipment that is heavy enough to unbalance an unoccupied and lightweight wheelchair when swung out to the side. It is recommended to remove the device and/or mount before the wheelchair is vacated.

The horizontal tube is pre-assembled with the rotate joint; tube length cannot be changed after ordering. Standard length 16”; limited custom options.

Default Configuration
  • Frame Clamp Inner Piece – 1” Standard UFC1000IP
  • Quick Release Base – TUSB
  • Side tube 22” length, 3” offset – S-22x3
  • Frame Clamp Assembly Style – Locking RFCR receiver
